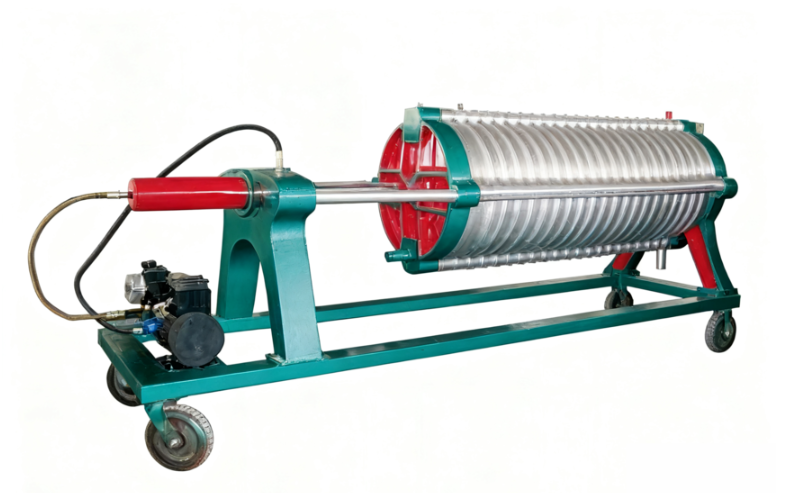

Cotton Cake Filter Press

No price
商品说明


Overview

Cotton cake filter press uses regenerable fibre material as filter medium to remove traces of oil , mechanical impurities and suspension complexes etc, making the filter liquid clear.

Design Feature

The cotton cake filter press is a kind of plate frame filter press. It is used for liquid purification and filtration. This machine has advantages of large filter area and convenient operation. It adopts round plates, which has better performance. Plate material can be aluminum alloy or polypropylene to suit different filter material.

 Application

It's mainly used in the following fields: fermentation broth, enzymes, RAN, gelatin, food, beverage and other fields that in need of higher filter precision.

商品参数
Filter   area(m2Rate size(mm)Plate Thickness(mm)Filtration pressure(kg/cm2) Plate NO.(pcs)Max Feeding   Pressure(kg/c㎡)Total Volume(L)Dimensions   L*W*H(mm)Flow(L/Min)Motor Power(KW)Rotating   Speed(r/min)Squeezing Pressure(Mpa)Max Travel Limit of Closing   Plate(mm)
8Ф50050≤22232162630*1150*770871.1146012350
5Ф40050≤22231382630*1050*670551.1146012350
