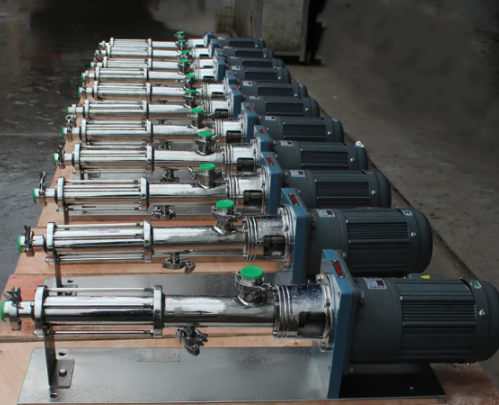

Dosing screw pump

: ~~No price~~

商品说明

Please confirm the flow capacity, feeding pressure, pump type and flow direction.

Flow: Under pressure, the flow is proportional to the rotating speed.

Pressure: It's decided by the pump grade number, normally every range is 0.6 MPa.before using.

Flow Direction: the flow direction is decided by the motor direction. The inlet/outlet is set according to needs. Normally the port near to the motor is the inlet.

商品参数

Model	Flow Q (m³/h)	Working Pressure(Mpa)	Max Speed n(r/min)	Motor Power p(kw)	(NPSH) r(m)	Inlet Flange Diameter(mm)	Outlet Flange Diameter(mm)	Allowable Particle Diameter(mm)	Allowable Fiber Length(mm)


G10-1	0.1	0.6	960	0.55	4	25	25	0.8	15

G10-2		1.2		0.55
G13-1	0.4	0.6	960	0.55		25	25	0.8	15

G13-2		1.2		0.55
G15-1	0.6	0.6	960	0.55		25	25	0.8	15
G15-2		1.2		0.55
G20-1	0.8	0.6	960	0.75		25	25	1.5	25

G20-2		1.2		1.5
G25-1	2	0.6	960	1.5		32	25	2	30
G25-2		1.2		2.2
G30-1	5	0.6	960	2.2		50	40	2.5	35
G30-2		1.2		3
