Home >> Products >>Washing | screening equipment >>filter >> Drum concentrated belt fiter press(Stainless steel or carbon steel)

Product Detail

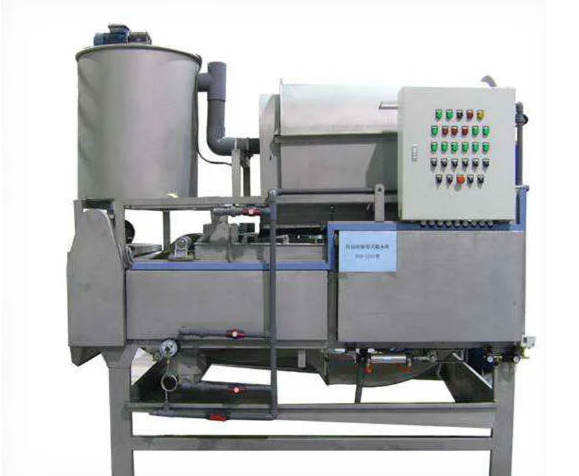

Drum concentrated belt fiter press(Stainless steel or carbon steel)

: ~~No price~~

商品说明

商品参数

Model				Belt Width(mm)			Capacitym3/hr) Feed concentration (Solid content 0.5-1%)									Dry Solid(kg/hr)					Cake Moisture(%)											Power (kw)																					S.STray					Reference Dimensions(mm)								Foundation Dimensions L2×W1(mm)						Weight(kgs)
																																Power of Driving Motor										Mixing Power							Drum concentrator motor power

																																																												W			H
DNY500				500			3-5.2									45-78					65-84											0.75										0.37							00.37				with					2600		1050			2175			2100*836						800

DNY750				750			4.5-7.5									68-113					65-84											0.75										0.37							0.37				with					2600		1300			2175			2100*1086						1000
DNY1000				1000			6-10.5									98-158					65-84											0.75										0.37							0.37				with					2600		1550			2270			2100*1336						1200
DNY1250				1250			7-12.5									113-188					65-84											0.7										0.37							0.37				with					2600		1800			2270			2100*1586						1400
DNY1500				1500			9.5-15									143-240					65-84											0.75										0.37							0.37				with					2600		2050			2270			2100*1836						1800

DNY1500L				1500			12-20.5									180-308					65-84											0.75										0.55							0.55				with					2600		2300			2510			2455*1866						2200
DNY1750				1750			15-24.5									225-368					65-84											1.1										0.55							0.55				without					3190		2300			2510			2455*2096						2400
DNY2000				2000			18-30									270-450					65-84											1.5										0.75							0.75				without					3190		2550			2510			2455*2346						2800

DNY2500				2500			25-35									300-550					65-84											2.2										0.55*2							0.55*2				without					4300		3300			2850			3550*2846						3200
DNY3000				3000			30-45									360-675					65-84											3										0.75*2							0.75*2				without					4300		3550			2850			3550*3346						3600
Remark							Decided by the Sludge type																																														Can be customized					We will supply with drawings
