Belt thickener

: ~~No price~~

商品说明

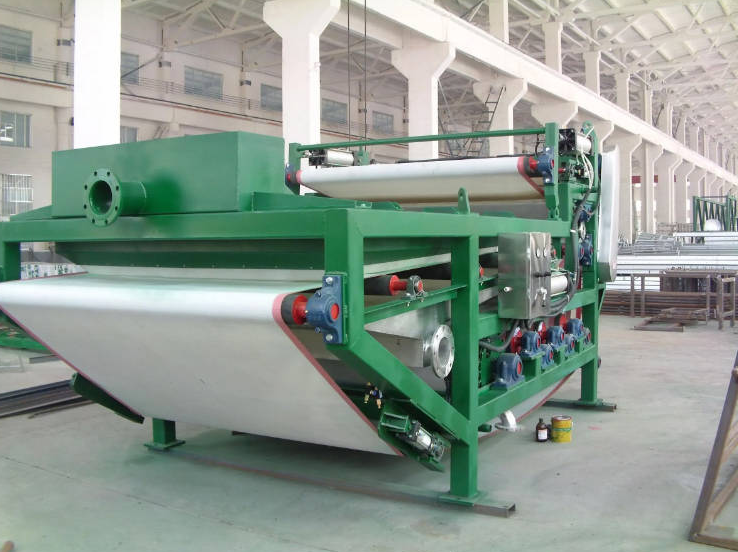

The DN belt sludge thickener is a fully automatic sludge thickener that can replace the traditional sludge thickening tank. It can directly thicken the sludge in the secondary sedimentation tank quickly and continuously, and sludge concentration after treatment is stable and adjustable in the range of 90-96%. With this slurry thickener, there is no need to build a sludge thickening tank any more, which greatly reduces construction cost and floor space. This model adopts international advanced technoloay and the most developed desian. which can meet the requirements of different industries for sludge treatment.

商品参数

Model	Belt Width	Capacity (m³/hr)	Drive motor(kw)	Mixing Power(kw)	Size (mm)			Weight(kg)
					L	W	H
DZDS-500	500	5-15	0.55	0.75	5100	1100	2100	500
DZDS-750	750	8-20	0.55	0.75	5100	1350	2100	750
DZDS-1000	1000	10-25	0.55	0.75	5100	1600	2100	1000

DZDS-1250	1250	12-35	0.55	0.75	5100	1850	2100	1250

DZDS-1500	1500	15-40	0.75	1.1	5100	2100	2100	1500
DZDS-1750	1750	20-45	0.75	1.1	5100	2350	2100	1750
DZDS-2000	2000	30-50	0.75	1.5	5100	2600	2100	2000
DZDS-2500	2500	35-70	0.75	1.5	5100	2850	2100	2250
DZDS-3000	3000	40-80	1.5	1.5	5100	3100	2100	2500

Remark	Decided by the nature of wasrewater					Can be customized	We will supply with drawings
