Once Open Filter Press

: ~~No price~~

商品说明

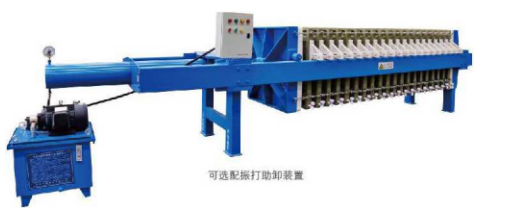

Once open filter press equipped extended cylinder and beam, using S.S. chain(or slide) for each filter plate connection, to make all the filter plate opening at the same time while pressing plate withdrawing. With vibration device assembled for quick unload and discharge material automatically.

Advantages: high efficiency, labor-saving

Disadvantages: suitable for small quantity of filtering plate, no more than 30pcs. plates type is recommended.

商品参数

Model						Filter area	Plate size	Cake thickness	Filter chamber volume	Plate NO.	Filtration pressure	Motor Power	Weight	Dimensions LWH(mm)	Foundation Size(mm)
															L	B	D	H
X	A	Y4/450-30U	B			4	500*500	30	60	9	≤0.6	2.2	890	2230800900	1550	390	700	560
	M		K
X	A	Y5/450-30U	B			5			79	12			920	2630800900	1800
	M		K
X	A	Y6/450-30U	B			6	700*700		95	7		2.2	1450	220010501150	1490	560	1110	700
	M		K
X	A	Y8/450-30U	B			8			119	9			1500	240010501150	1640
	M		K
X	A	Y10/630-30U		B		10			154	12			1610	254010501150	1890
	M			K
X	A	Y12/630-30U		B		12			178	14			1720	313010501150	2140
	M			K
X	A	Y15/630-30U		B		15			226	18			1880	355010501150	2490
	M			K
X	A	Y10/870-30U		B		10	870*870		154	7		2.2	1940	272012701300	1580	700	1380	785
	M			K
X	A	Y20/870-30U		B		20			307	15			2230	350012701300	2430
	M			K
X	A	Y18/1000-30U			B	18	1000*1000		270	10		4	1850	347014001400	2320	780	1480	1000
	M				K
X	A	Y35/1000-30U			B	35			525	20			2540	547014001400	3620
	M				K
X	A	Y28/1250-30U			B	28	1250*1250		420	10		4	3600	411017701600	3220	850	1740	1250
	M				K
X	A	Y55/1250-30U			B	55			833	20			5000	651017701600	4320
	M				K
