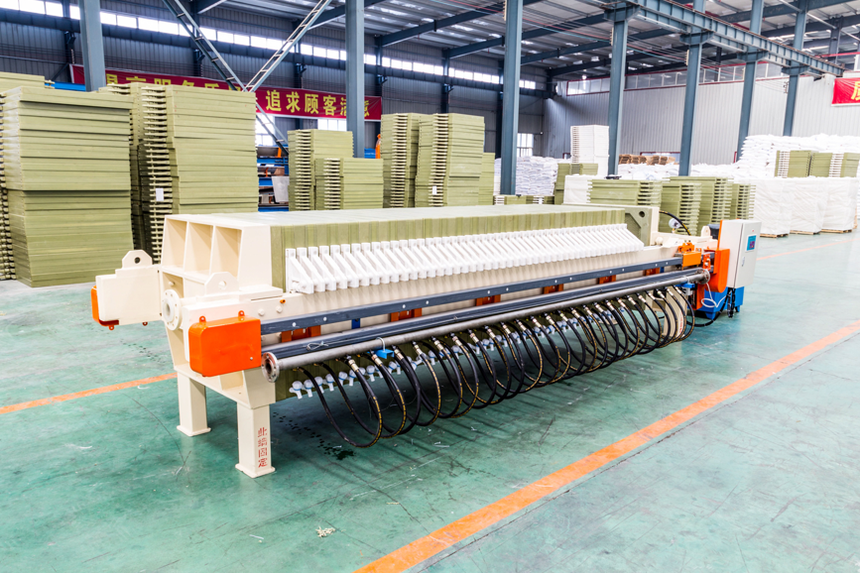

High pressure program controlled membrane filter press

: ~~No price~~

商品说明

High Pressure Program Controlled Membrane Filter Press adopts intemational advanced TPE membrane technology.

Endurable, stable, universalizable and widely used in various industries.

Materials can be squeezed by water pressure or compressed air, the pressure could up to0.8-2.0 MPa.

Variable filter chamber technology is widely applied on solid-liquid separation of chemical，pharmacy,mining industries to reduce thewater content of material and extremely improvethe production efficiency.

Compared with traditional dehydration equipments, the application of high pressure dewatering technology

can achieve a lowest water content of filter cake in sewage dehydration industry,

so that the water content of filter cake shall meet the burying or burning standard(water content requirements are different among industries).

Moreover, weight and volume of filter cake are reduced by half.

The entire machine can be operated automatically, it could be unattended by equipped with on-line washing and electrical valve or instruments.

商品参数

规格型号Model							过滤面积(m²)	滤板尺寸(mm)	滤室厚度（mm）	滤室容积(L)	滤板数量(pcs)	过滤压力(Mpa)	电机功率(kw)	整机质量(kg)	外形尺寸长宽高(mm)	地基尺寸(mm)
							Filter area	Plate size	Cake thickness	Filter chamber volume	Plate NO.	Filtration pressure	Motor Power	Weight	Dimensions LWH(mm)	Foundation Size(mm)
																L	B	D	H
X	A	G30/870-U	B				30	870*870	≤35	498	23	≤0.8	2.2	3046	388013501230	2920	700	1270	785
	M		K
X	A	G40/870-U	B				40			623	29			3593	427013501230	3300
	M		K
X	A	G50/870-U	B				50			789	37			4057	479013501230	3820
	M		K
X	A	G60/870-U	B				60			955	45			4597	531013501300	4340
	M		K
X	A	G70/870-U	B				70			1121	53			5136	583013501230	4860
	M		K
X	A	G80/870-U	B				80			1287	61			5636	635013501230	5380
	M		K
X	A	G50/1000-U		B			50	1000*1000		776	27		4	4352	427015001360	3350	780	1400	870
	M			K
X	A	G60/1000-U		B			60			943	33			4480	477015001360	3780
	M			K
X	A	G70/1000-U		B			70			1109	39			5263	513015001360	4210
	M			K
X	A	G80/1000-U		B			80			1275	45			5719	556015001360	4640
	M			K
X	A	G100/1000-U			B		100			1608	57			6555	641015001360	5490
	M				K
X	A	G120/1000-U			B		120			1941	69			7466	726015001360	6340
	M				K
X	A	G80/1250-U		B			80	1250*1250	≤40	1560	29		5.5	10900	483018001600	3960	850	1740	995
	M			K
X	A	G100/1250-U			B		100			1975	37			11750	544018001600	4570
	M				K
X	A	G120/1250-U			B		120			2391	45			12600	606018001600	5180
	M				K
X	A	G150/1250-U			B		150			2911	55			13620	682018001600	5950
	M				K
X	A	G160/1250-U			B		160			3119	59			14470	713018001600	6255
	M				K
X	A	G200/1250-U			B		200			3847	73			15320	820018001600	7325
	M				K
X	A	G240/1250-U			B		240			4679	89			16170	942018001600	8550
	M				K
X	A	G250/1250-U			B		250			4783	91			17020	957018001600	8700
	M				K
X	A	G200/1500-U			B		200	1500*1500		3809	49		11	26120	714022001820	5870	1170	1990	1070
	M				K
X	A	G250/1500-U			B		250			4723	61			26930	773022001820	6860
	M				K
X	A	G300/1500-U			B		300			5637	73			28160	872022001820	7850
	M				K
X	A	G350/1500-U			B		350			6551	85			29600	1011022001820	9090
	M				K
X	A	G400/1500-U			B		400			7618	99			31500	1126022001820	10240
	M				K
X	A	G450/1500-U			B		450			8532	111			33400	1225022001820	11230
	M				K
X	A	G500/1500-U			B		500			9446	123			33380	1324022001820	12220
	M				K
X	A	G600/2000-U			B		600	2000*2000		11901	85		15	54164	1303030002500	10610	1660	2000	1050
	M				K
X	A	G700/2000-U			B		700			13838	99			58300	1439030002500	11920
	M				K
X	A	G800/2000-U			B		800			14945	107			62460	1577030002500	13240
	M				K
X	A	G900/2000-U			B		900			17713	127			66620	1715030002500	14560
	M				K
X	A	G1000/2000-U				B	1000			19651	141			70780	1853030002500	15880
	M					K
